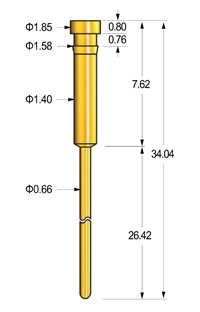

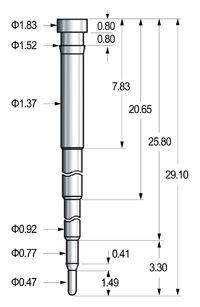

* Dimensions in Millimeters
 |
 |
 |
 |
 |
|
 |
 |
 | |
 | |
Mechanical | |
| Mating Pin Dia. | Φ0.40 ~ 0.56 |
| Insertion Force | 150g ± 20% (Φ0.46) |
| Extraction Force | 90g ± 20% (Φ0.46) |
Material and Finish | |
| Sleeve | Brass, Tin Plated over Nickel |
| Contact | Beryllium Copper, Gold Plated over Nickel |
|
 |
|
|
|
|
|
|
 | |
| |
Mechanical | |
| Mating Pin Dia. | Φ0.40 ~ 0.56 |
| Insertion Force | 150g ± 20% (Φ0.46) |
| Extraction Force | 90g ± 20% (Φ0.46) |
Material and Finish | |
| Sleeve | Brass, Gold Plated over Nickel |
| Contact | Beryllium Copper, Gold Plated over Nickel |
|
 |
|
|
|
|
|
|
 | ||||||||||
| ||||||||||
Mechanical | ||||||||||
| Mating Pin Dia. | Φ0.40 ~ 0.56 | |||||||||
| Insertion Force | 150g ± 20% (Φ0.46) | |||||||||
| Extraction Force | 90g ± 20% (Φ0.46) | |||||||||
Material and Finish | ||||||||||
| Sleeve | Brass, Tin Plated over Nickel | |||||||||
| Contact | Beryllium Copper, Tin Plated over Nickel | |||||||||
|
||||||||||
