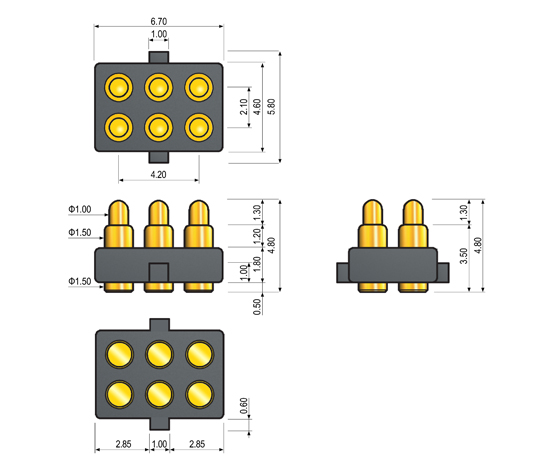

* Dimensions in Millimeters

Material and Finish
Plunger	Brass, Gold Plated over Nickel
Barrel	Brass, Gold Plated
Spring	Music Wire, Gold Plated over Nickel
Housing	PA46 (or PA9T)
Electrical
Current Rating	DC 12V, 2A
Resistance	30mΩ Max.
Mechanical
Unloaded Height	4.80mm
Working Height	4.00mm
Contact Force	80±20% at Working Height
Durability	10,000 Cycles
