.jpg)
.jpg){kind=small}
.jpg)

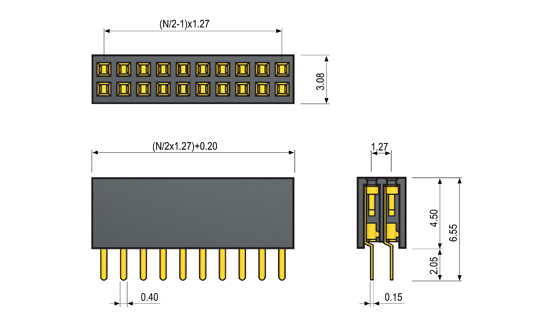

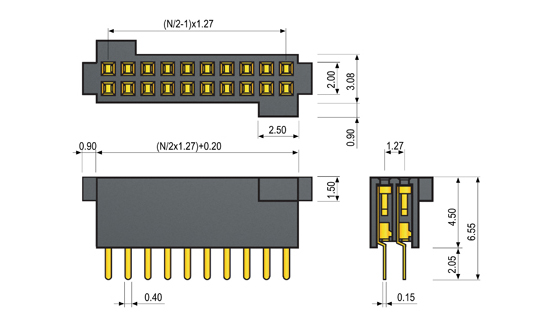

* Dimensions in Millimeters
-n.jpg) | |
 | |
Material and Finish | |
| Insulator | PA 46 Stanyl (UL 94V-0), Black |
| Contact | Phosphor Bronze, Au over Ni Plated |
Electrical | |
| Withstanding Voltage | 250V AC / 1min |
| Current Rating | 2A |
| Contact Resistance | 15mΩ max initial |
| Insulation Resistance | 100MΩ min |
Mechanical | |
| Insertion Force | 110 ~ 250 gf max per Contact |
| Extraction Force | 90 ~ 200 gf min per Contact |
| Durability (Mating Cycles) | 200 min |
Environmental | |
| Operating Temperature Range | -55℃ to +150℃ |
 | ||
 |
 |
 |
 |
 |
|
 |
 |
|
 | ||
|
 |
|
|
|
|
|
|
|
